Calling RESTful Services using JSON format in Silverlight 2

I have already blogged about integration of ASMX and WCF services with Silverlight 2 in my previous posts, Hope they are helpful to all of you. Now going one step ahead, I am now talking about REST and JSON, you find it alien?

Now the whole world knows that Silverlight don’t support anything beyond basicHttpBinding [ If you have any plans to integrate WF (Workflows), better create wrapper and try it out ]

REST is getting popular today firstly because of integration in various types of Applications, Do SOAP understood by every? how much pain in convert XML response to format which we want, performance, well too many questions arises,I am still not able to comment whether REST is best thing to follow or not, but whatever amount I use it, I find it handy and useful,so thought I should share with you all.

REST by default returns XML if we don’t mention return type format, There are two format as POX [Plain Old XML] form or JSON [JavaScript Object Notation]

If you still want in-depth information about REST, you can visit :

You don’t have any separate template for creating RESTful Services for Silverlight 2 in Visual Studio, same for JSON.So I am going to do this with our normal WCF Template.

XAML Code :

<Grid x:Name="LayoutRoot" Background="AliceBlue">
    <TextBlock Height="23" Margin="94,8,116,0" VerticalAlignment="Top" Text="Explore .NET with Vikram Pendse" TextWrapping="Wrap" Foreground="#FF000000" />
    <StackPanel x:Name="stk" Width="400" Margin="0,66,0,30">
        <TextBlock Margin="78,10,0,30" Text="FirstName:"/>
        <TextBox Margin="40,-50,0,30" x:Name="txtFirstName" Height="20" Width="150" Text="{}" />

        <TextBlock Margin="78,-5,25,30">LastName :</TextBlock>
        <TextBox Margin="40,-60,0,10" x:Name="txtLastName" Height="20" Width="150" />

        <Button x:Name="btnSubmit" Height="20" Width="100" Content="Submit" Click="btnSubmit_Click" />

    <TextBlock Width="220" Height="30"  Margin="80,0,100,20" VerticalAlignment="Bottom" x:Name="JsonResult" Foreground="#FF000000"/>

WCF Service Code :

public string ReturnUser(string str1, string str2)
     string strtemp;
     strtemp = "Your Complete Name is:" + string.Concat(str1, str2);
     return strtemp;

public interface IJsonService
    string ReturnUser(string str1, string str2);

Note : [WebGet(ResponseFormat=WebMessageFormat.Json)]

Here is the critical step to decide whether the response will be POX or JSON, if you specify nothing,by default it will be XML, if you define as JSON, response will be stream which you need to deserialize where you are managing response.

Web.Config : [You need to make binding as webHttpBinding]

            <service behaviorConfiguration="SL_JSON.Web.JsonServiceBehavior" name="SL_JSON.Web.JsonService">
                <endpoint address="" binding="webHttpBinding" contract="SL_JSON.Web.IJsonService">
                        <dns value="localhost"/>
                <endpoint address="mex" binding="mexHttpBinding" contract="IMetadataExchange"/>

Another Important Step is to add Factory Attribute in your svc file markup like this :

<%@ ServiceHost Language="C#" Debug="true" Factory="System.ServiceModel.Activation.WebServiceHostFactory" Service="SL_JSON.Web.JsonService" CodeBehind="JsonService.svc.cs" %>

It will not work unless you add attribute Factory="System.ServiceModel.Activation.WebServiceHostFactory"

Page.xaml.cs :

private void btnSubmit_Click(object sender, RoutedEventArgs e)
           WebClient wc = new WebClient();
           string uri = "http://localhost:1603/JsonService.svc/ReturnUser?str1=";
           uri += txtFirstName.Text + "&str2=";
           uri += txtLastName.Text;
           wc.OpenReadAsync( new Uri(uri,UriKind.Absolute));
           wc.OpenReadCompleted+=new OpenReadCompletedEventHandler(wc_OpenReadCompleted);

void wc_OpenReadCompleted(object sender, OpenReadCompletedEventArgs e)
           byte[] stream =new byte[200];

           string str = String.Empty;

           for (int i = 0; i < stream.Length; i++)
               str += (char)stream[i];

           JsonResult.Text = str;

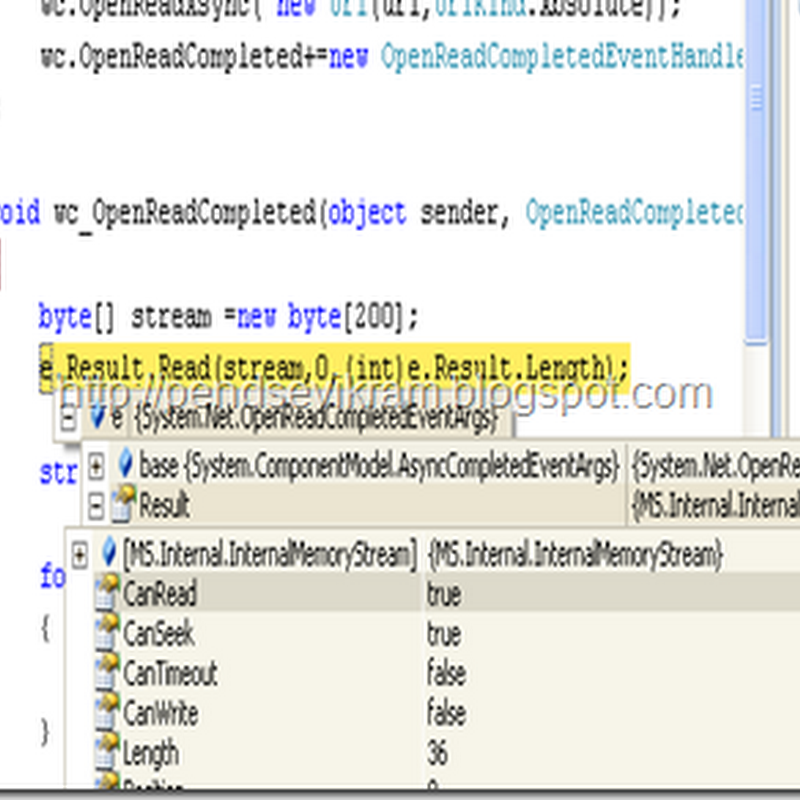

Since we set format as JSON, so it will return you the stream, you can read that stream using e.Result.Read(), then with normal logic of reading stream, we are fetching data from Stream and assigning it to TextBlock and Output will be like :


One thing you must have observe that I have not created any proxy to consume service and I am simply making use of WebClient given to us by System.Net.

I am also want to encourage you to read more on attributes like WebGet and WebInvoke.

I am sure you must have now got idea about REST, JSON etc. I have written this to get overview and surely I will cover in-depth about REST and JSON in coming days.As always, your feedback most welcome.
